Maximum Controls MEGATRON-2200HP-PRO High Profile Commercial Swing Gate Operator
Maximum Controls MEGATRON-2200HP-PRO High Profile Commercial Swing Gate Operator

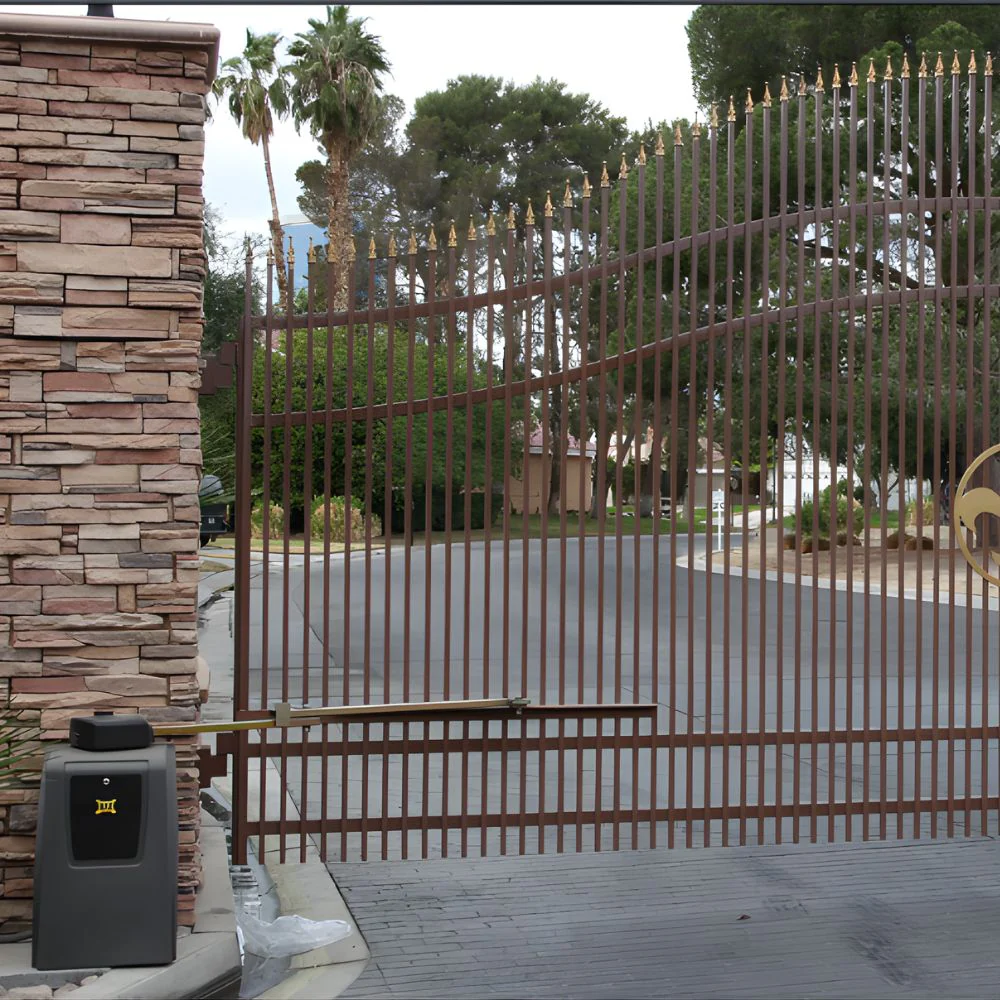

The Max Megatron HP 2200 PRO has a fast-speed direct drive (no chains, belts, or pulleys) and opens the gate 90 degrees from 11.5 to 18 seconds based on the weight of the gate and selectable speed control. The Megatron 2200 PRO ships with an AGM 7 amp-hour battery backup, enabling over 400 cycles in case of power failure. This operator is also compatible with existing installations and, in most cases, can be directly bolted onto concrete pads used by the most common gate operators in the industry.
Includes
- Standard Swing Arm Assembly (MX025)
- Maximum MEGATRON-2200HP-PRO-H High Profile Swing Gate Operator Head Only MAX-MEGATRON-2200HP-PRO-H
Key Features
- Gate capacity 2500 lbs / 15 ft or 1800 lbs / 20 ft
- 90º opening 11½ to 18 seconds; dependent on motor speed setting
- Brushless DC motor equivalent to a 1 1/4 HP AC motor
- Heavy-duty dual gear box 900:1 Size 80
- Built-in battery backup, providing a minimum of 400 cycles
- Continuous duty cycle
- Vehicle hit protection technology protects the gate operator from collision damage
- Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 Channels)
- UL 325/991 compliant Class I, II, III, and IV. CSA approved
Warranty
- 5-Year on all components
- 1 year on batterie
*Warranty period begins from the date of manufacture
Original: $4,155.99
-70%$4,155.99
$1,246.80
Description
Maximum Controls MEGATRON-2200HP-PRO High Profile Commercial Swing Gate Operator
The Max Megatron HP 2200 PRO has a fast-speed direct drive (no chains, belts, or pulleys) and opens the gate 90 degrees from 11.5 to 18 seconds based on the weight of the gate and selectable speed control. The Megatron 2200 PRO ships with an AGM 7 amp-hour battery backup, enabling over 400 cycles in case of power failure. This operator is also compatible with existing installations and, in most cases, can be directly bolted onto concrete pads used by the most common gate operators in the industry.
Includes
- Standard Swing Arm Assembly (MX025)
- Maximum MEGATRON-2200HP-PRO-H High Profile Swing Gate Operator Head Only MAX-MEGATRON-2200HP-PRO-H
Key Features
- Gate capacity 2500 lbs / 15 ft or 1800 lbs / 20 ft
- 90º opening 11½ to 18 seconds; dependent on motor speed setting
- Brushless DC motor equivalent to a 1 1/4 HP AC motor
- Heavy-duty dual gear box 900:1 Size 80
- Built-in battery backup, providing a minimum of 400 cycles
- Continuous duty cycle
- Vehicle hit protection technology protects the gate operator from collision damage
- Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 Channels)
- UL 325/991 compliant Class I, II, III, and IV. CSA approved
Warranty
- 5-Year on all components
- 1 year on batterie
*Warranty period begins from the date of manufacture
