Magnetic Autocontrol Access XL2 Right-Hand Barrier Gate Operator Only
Magnetic Autocontrol Access XL2 Right-Hand Barrier Gate Operator Only
For wide lane use
With its opening width of up to 28 ft and the optional security barrier arm skirt with optional climb-over prevention, the Magnetic XL2 is the ideal solution when wide entrances of up to 28 ft. have to be controlled with a single barrier. The control system of the Access XL2 offers a wide range of functions and numerous expansion potentials through the use of plug-in modules.
The five expansion slots could be used for an Ethernet interface, a radio module, or a counting module for determining the number of parking spaces still available. All inputs and output functions can be individually configured by the user. The opening and closing times can each be selected from three levels independently of one another.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

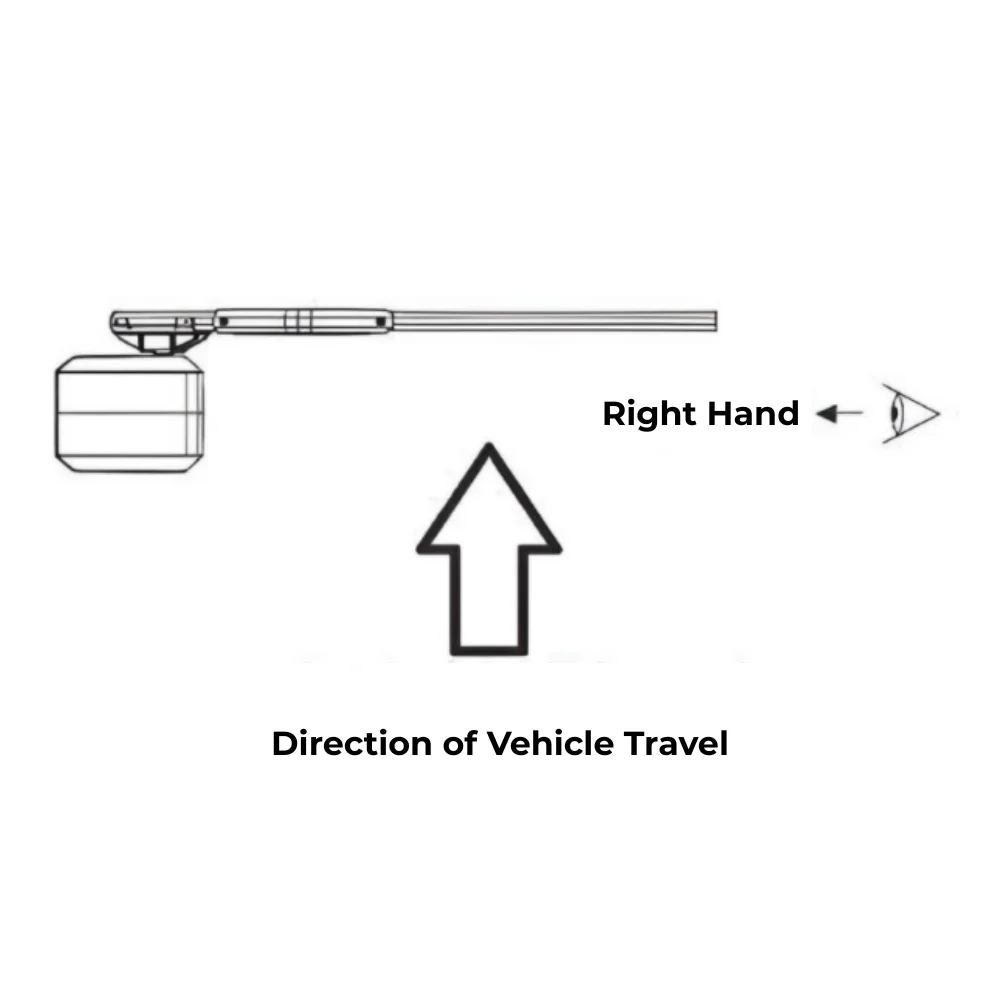

If you need the left-hand version, click here.
**Barrier arms over 19 ft. must be supported with pendulum support or with a support post.
Innovative drive technology
The MHTM™ drive unit is maintenance-free, energy-efficient, and quiet. The high torque guarantees the best possible operation even under extreme weather conditions.
Low operating costs
With arm lengths up to 28 ft., the Access XL2 series is perfectly suited for a wide variety of applications. Thanks to their high energy efficiency, extremely long service lives, and simple maintenance, barriers from Magnetic are particularly cost-effective – an investment that will certainly pay off!
Easy access to components
Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.
Features
- The opening width of up to 28 ft
- Opening and closing times as fast as 6.0 s
- High security with optional security skirt
- Very low operating costs thanks to efficient and durable MHTM™ drive
- Ease-of-use and optimum accessibility thanks to a well-thought-out design
- Designed for 2 million opening and closing actions
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Color: White (RAL 9010), Orange (RAL 2000)
- Opening Width: Max. 28 ft
- Opening/closing time: 6.0 s
- Power consumption: Max. 17 W
- Drive technology: MHTM™
- Voltage: 85-264 VAC, 50/60 Hz
- Duty cycle: 100%

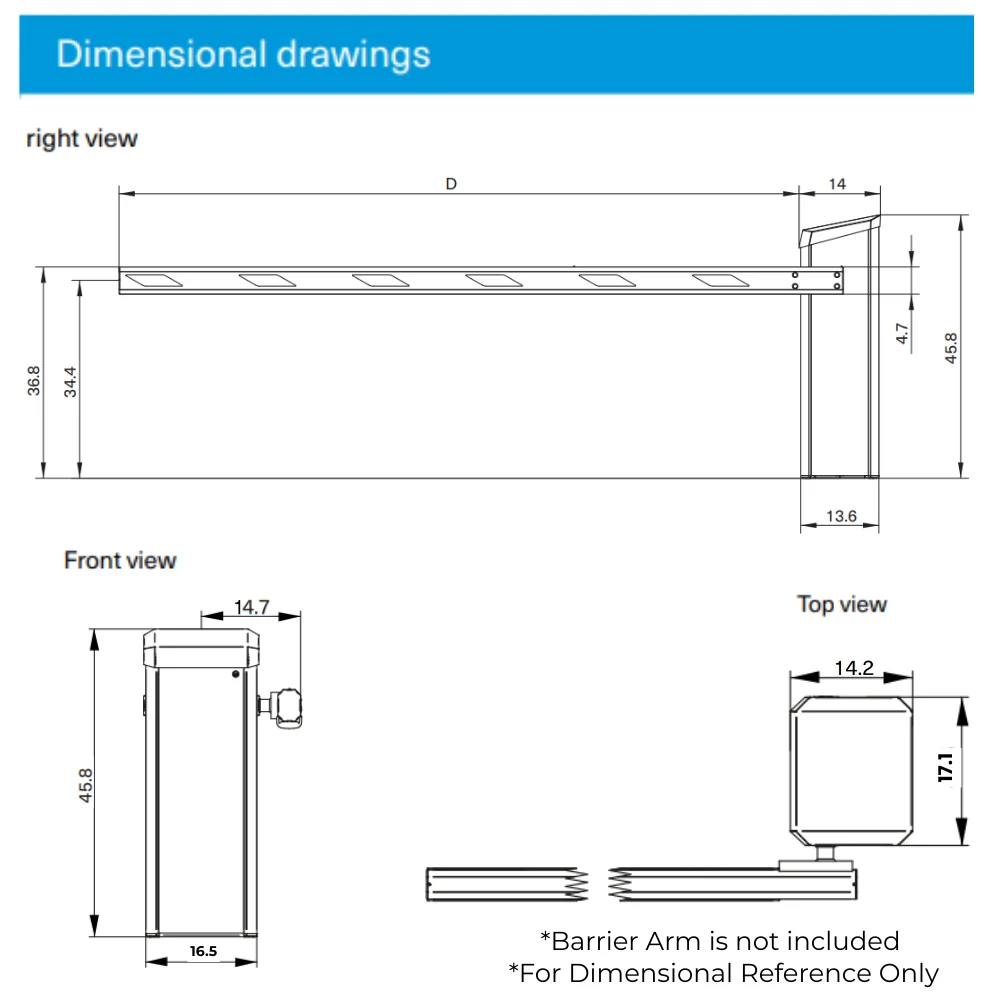

- Housing dimensions: 17.1" x 14.2" x 46"
- Enclosure rating: IP 54
- Temperature range: -22 to +131°F
- Weight: 242.5 lb
- Barrier arm type: MicroBoom XL (Excluded)
- Control system: MGC Pro
- Integrated 2-channel detector for induction loops: Standard
- Modular expansion of the control system: Freely expandable
- Variable I/O assignment: Standard
- No. of digital inputs: 8
- No. of relays/digital outputs: 6/4
- Input for safety light barriers with test: Standard
- Selectable closing speed: Standard
- Selectable opening speed: Standard
Product Literature
