Nice L9BAR Traffic Control Operator | HYS-O-LBAR/V1
Nice L9BAR Traffic Control Operator | HYS-O-LBAR/V1
Advanced traffic control solutions Sleek, energy-saving, modular traffic barrier with built-in control units. Digital motion control technology provides graceful, smooth movement through a full cycle.

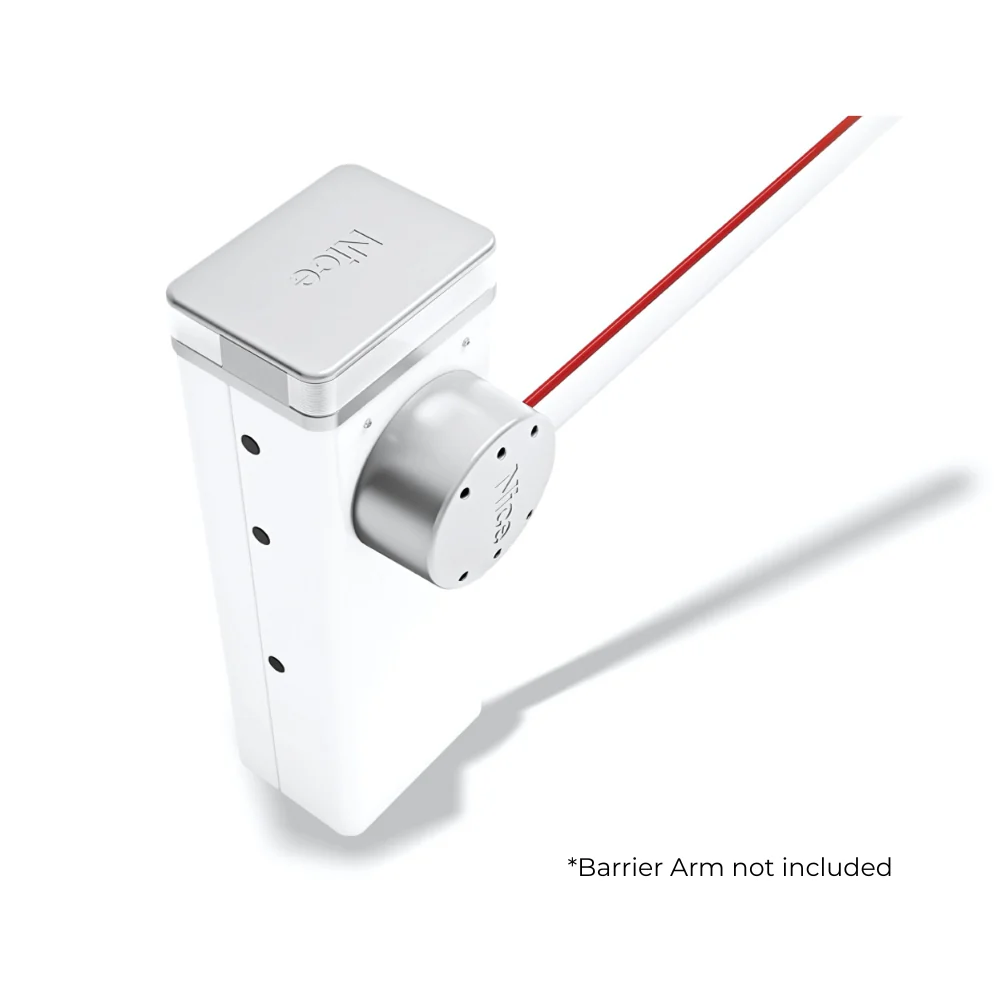

An electromechanical boom gates for residential and industrial use, which control the opening and closing of a driveway. This barrier is equipped with an electromechanical gearmotor with a 24 V motor, an electric limit switch system, and a warning light incorporated in the cover (optional accessory).
Note: Barrier Arm is sold separately.
Includes
- BCU1 Controller
Features
- Battery: 24VDC operator
- Design: Arm lengths from 23 to 29 ft
- Reliable: Available battery backup maintains operations in case of a power outage
- Efficient: Automatically switches to standby mode when idle to reduce consumption and save energy
- Swift: Smooth, graceful movement through a full cycle using motion control technology for long service life
- Visible: Optional integrated flashing or traffic light
- Intelligent: Obstacle detection reverses the arm on contact
- Gate types: Dual gate pairing through primary/secondary communication
- Applications: Solar option available
Technical Specifications
- Model: Nice L9BAR
- Arm Length Max.: 23 to 29 ft (7 to 8.9 m)
- Arm Design: Aluminum arm with red adhesive reflector and optional lights/bumper strips
- Full Open Angle: Adjustable to 90º (recommended to limit at 87º
- Duty Cycle: 150 cycles/hrs.
- Drive: Electromechanical
- Open/Close Time: 8 - 10 seconds. Field adjustable.
- Ingress Protection: IP44
- Handing: Universal: fi eld adaptable for left-hand or right-hand installations
- Temperature Rating: -4º to 122º F (-20º to 50º C)
- Operating Voltage: 24VDC
- Input Voltage: 120VAC 60/50Hz
- Accessory Power: 24VDC
- Communication: Optional Oview programmer, OVBT
- User Controls: BCU1 Control Board
- Relays: 4 programmable voltage outputs
- Finish: Cataphoretic coating and paint finish
- ETL Listed (UL 325): Usage Class I, II, III, IV
- Cycle Tested: 1 million cycles
- Warranty: 3-year warranty w/ product registration
Note: The Nice O-LBAR/V1 Traffic Control Operator was originally offered under the Apollo brand, known for its dependable gate automation components. Following Apollo’s acquisition by Nice, this part is now officially part of the Nice product line. It maintains the same compatibility and performance, now supported by the global resources and innovation of Nice Group.
