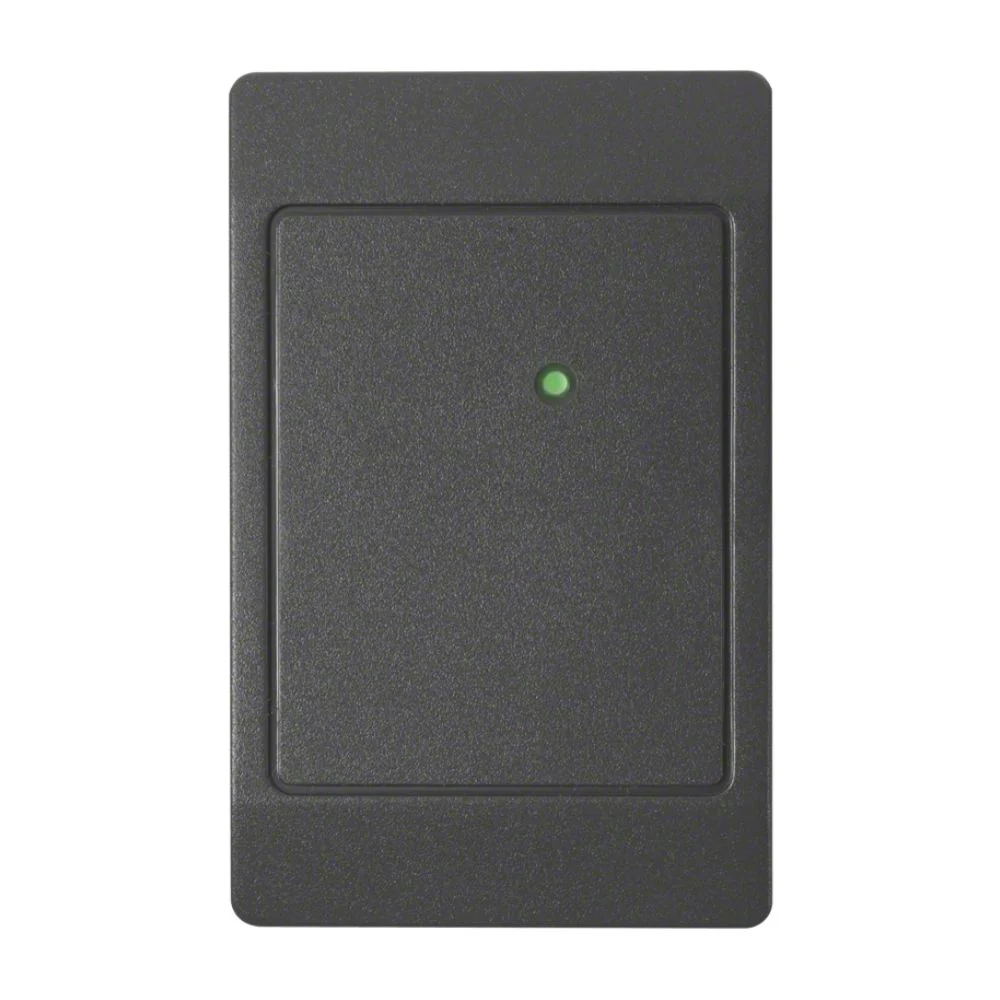

HID ThinLine II Reader (Wiegand Output, Black 18" Pigtail) | HID-5395CK100

HID ThinLine II Reader (Wiegand Output, Black 18 In. Pigtail) | HID-5395CK100

125 kHz low profile proximity card reader

Features

• The size of most standard U.S. switch plates
• Easily installed and maintained with the use of replaceable covers.
• Available with a Wiegand or Clock-and-Data interface.
• Provides high reliability, consistent read range, and low power consumption.
• Multicolor LED and internal control or host control of the LED and beeper.
• Mounts directly on metal with minimal impact on the read range performance
• Lifetime Warranty

Technical Specifications

• Dimensions: 4.7 ̋ x 3.0 ̋ x 0.68 ̋ (11.9 cm x 7.6 cm x 1.7 cm)
• Weight: 7.33 oz (208 g)
• Read Range: Up to 5.5˝ (14.0 cm)
• Mounting: Single-gang electrical box
• Power requirements: 5-16 VDC
• Current Requirements: 35 mA
• Termination: Pigtail
• Output Formats: Wiegand or Clock-and-Data
• Tamper: No
• Indoor/Outdoor: Both
