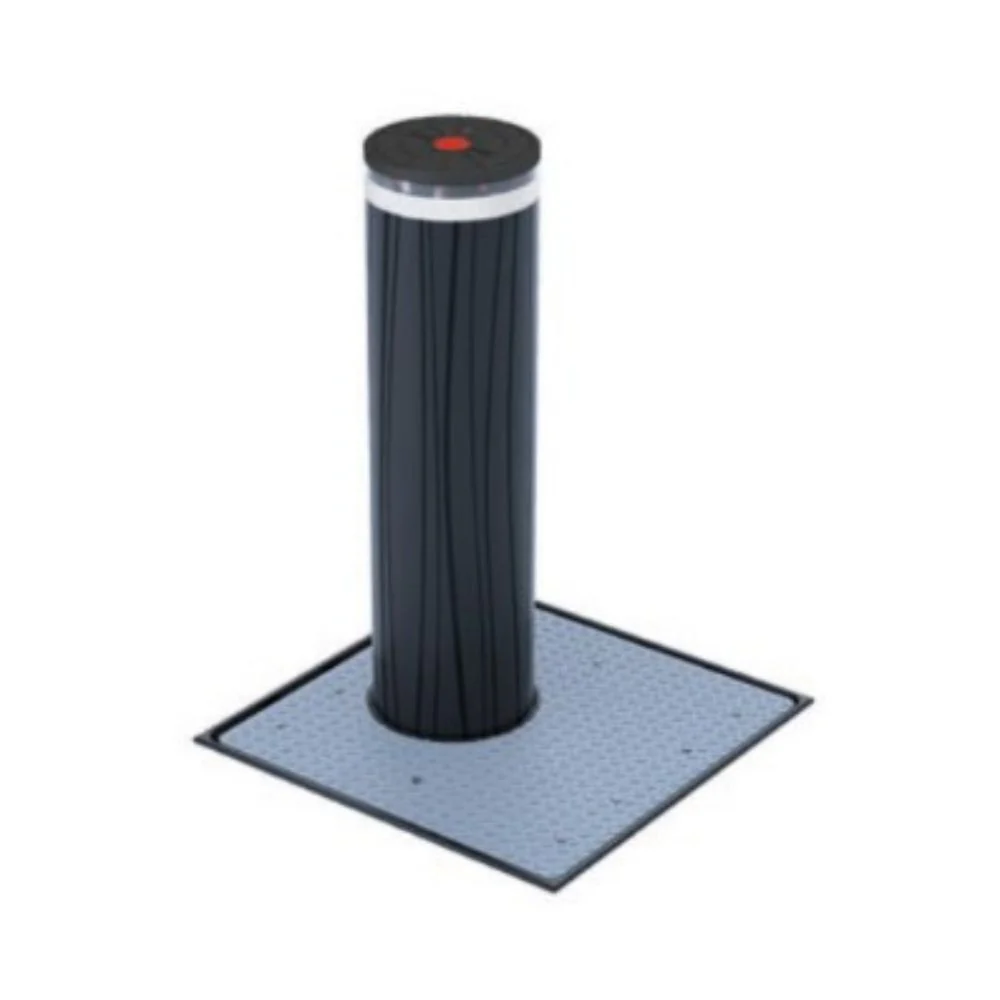

FAAC JS 48 HA EFO Retractable Security Bollard | FAA-117051

FAAC JS 48 HA EFO Retractable Security Bollard | FAA-117051

The JS 48 HA EFO comes with:

• Steel cylinder with cataphoretic coating
• mDure® protective sleeve, anthracite, with exclusive FAAC aesthetic finish
• Flashing LED lights ring
• Audible buzzer (active during movement)
• Reflector strip
• Hydraulic lock in raised position (in case of a power failure)
• Release key for manual emergency lowering
• Pressure accumulator for fast rise

Please Note

This product is a special order and is not eligible for returns or refunds.
The standard lead time is 16 weeks.

Features

• Maintenance can be carried out without removing the bollard. No lifting equipment required.
• Interchangeable protective cover so that the bollard is always just like new.
• Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards.
• Able to withstand impact with a truck driven at 30 mph (48 km/h). P1 penetration rating, still operational after impact.

Manufacturer's Warranty Period

• 2 years

Technical Specifications

• Type of operator: Hydraulic
• Cylinder height from ground: 39.4 in (1.000 mm)
• Cylinder diameter: 10.8 in (275 mm)
• Cylinder treatment: Cataphoresis
• Protective cover type: mDure®
• Reflective strip height: 2.16 in (55 mm)
• Standard reflecting strip color: White
• Head material type: Aluminum
• Head treatment type: Rilsan® anticorrosive resin
• Rising time: Approx. 6 s
• Quick rise device: No
• Emergency rising time - Approx 1.5 s
• Release device: Yes
• Descent time: Approx. 2 s
• Power supply voltage: 207-243V ~ 50/60 Hz
• Max. power: 3.500 W
• Type of use: Perimeter Security
• Break in resistance: 673.000 J
• Operating ambient temperature: 5°F - 149°F (-15 °C / +80 °C)
• Operating ambient temperature with heater: -40°F - 149°F (-40°C / +80°C)
• Hydraulic pump unit protection class: IP67
• Load class (EN 124): C250 (25 metric ton)
• Traffic bollard weight: 1,235 lb. (530 kg)
• Pit weight: 441 lb. (200 kg)
