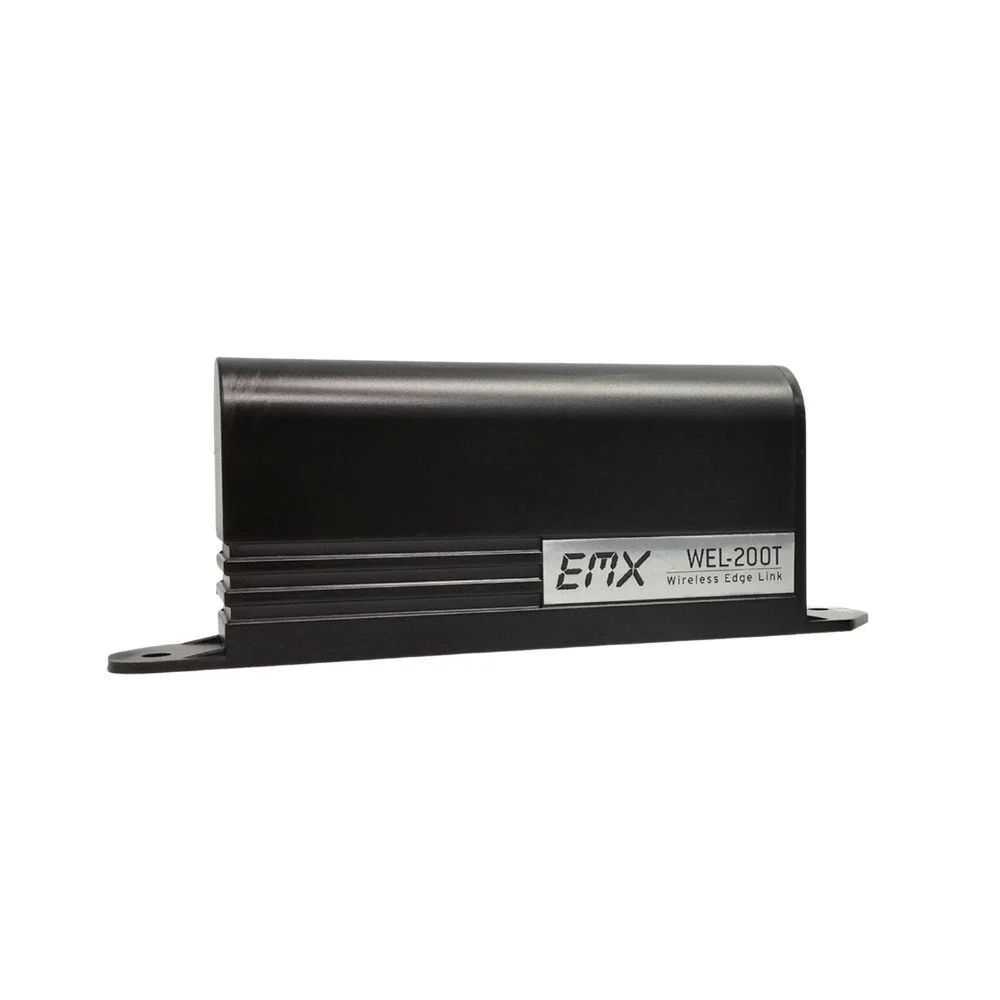

EMX TX Transmitter | EMX-WEL-200T

EMX TX Transmitter | EMX-WEL-200T

The WEL-200 transmitter is compatible with both 8.2K and 10K monitored safety edges. WEL transmitters will operate for two years on two AA lithium batteries.

The WEL-200 system provides a complete wireless solution for interfacing sensing edges with gate and door operators. This wireless edge link eliminates the wiring between the safety edge and operator control box while ensuring compliance with 2018 UL325 monitoring standards.

Features

• UL325-2018 compliant
• NC, 10K, and pulse monitoring
• Up to 200 ft. operating range (line of sight)
• Connect up to 4 safety edge transmitters
• NEMA 4X enclosure

Manufacturer's Warranty

• 2 Years

Technical Specification

• Operating Range: Up to 200 ft. (line of sight)
• Operating Frequency: 915 MHz
• Response Time: 100ms
• Power/Fault Indicator: Green transmit/status LED
• Channel Status Indicator: NA
• Channel Mode Selection Switch: NA
• Outputs: NA
• Resistive Termination: NA
• Power Protection: Thermal fuse

• Environmental Rating: NEMA 4X
• Power Supply: 3-3.6 VDC (2x AA batteries) (ANSI 15-LF, IEC-FR14505 (FR6))
• Battery Life: 2 years at 25°C
• Current Draw: NA
• Operating Temperature: -40°…60°C (-40°…140°F)
• Dimensions (L x W x H): 180mm (7.0”) x 32mm (1.3”) x 67mm (2.6”)
• Weight: 170g (6 oz.)
• Connections: 2 terminals (18-26AWG)

Product Literature

• EMX-WEL-200 Spec Sheet
• EMX-WEL-200 Instruction Manual
