BEA FOCUS Active Infrared Presence Sensors

BEA FOCUS Infrared Presence Sensors

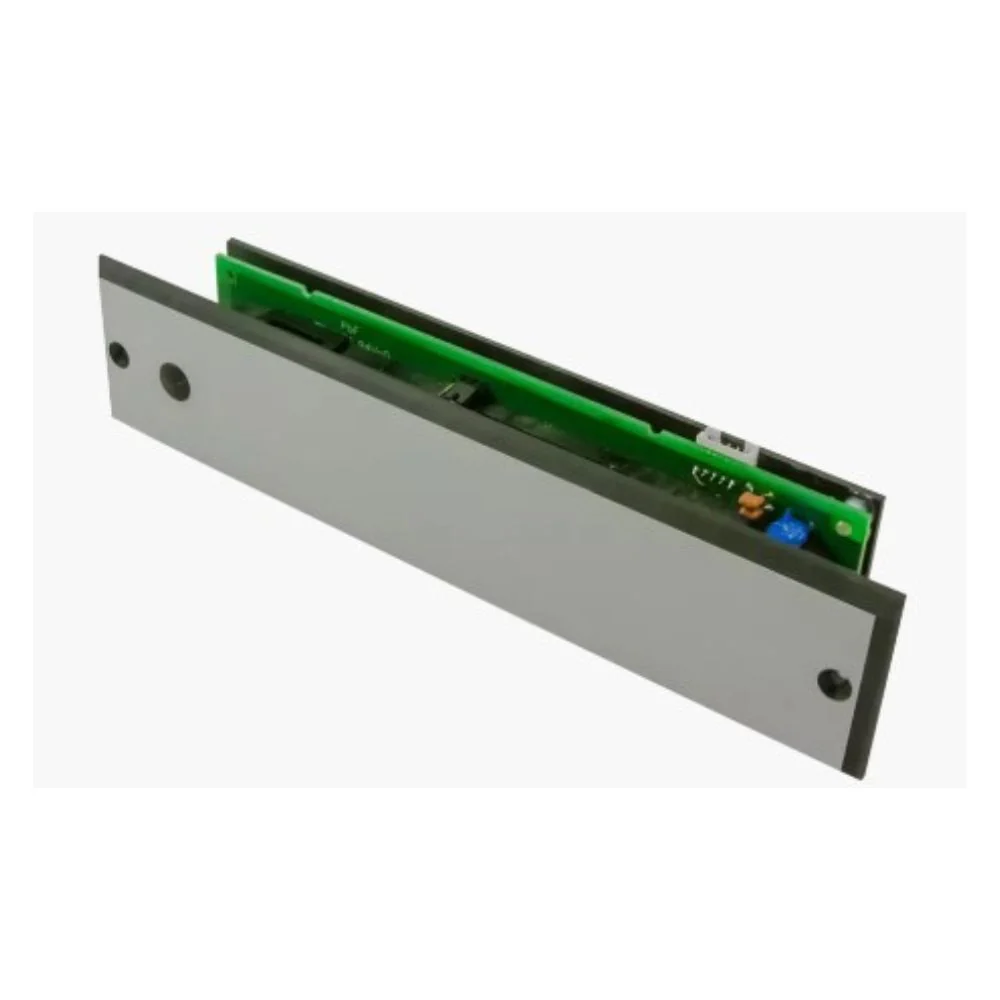

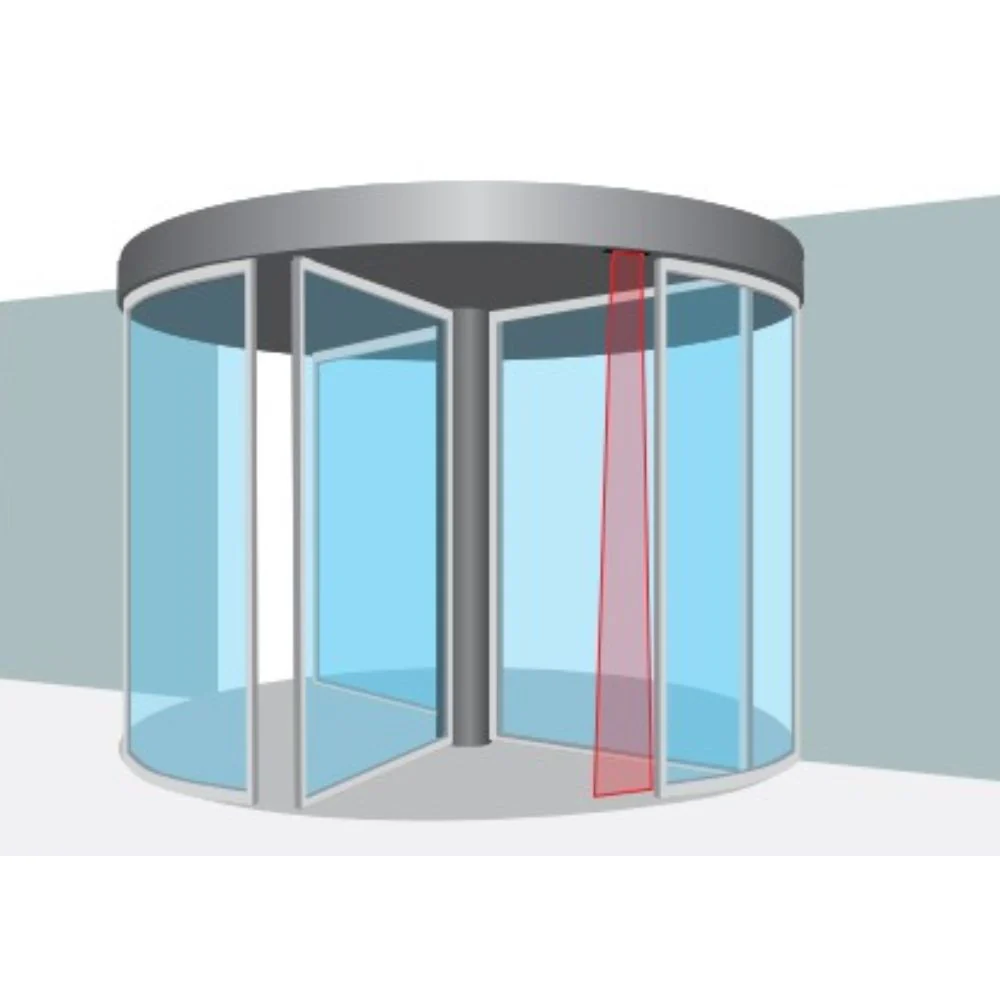

BEA’s FOCUS FAMILY consists of focused active infrared-based presence sensors designed to effectively detect people and objects. These compact sensors can be used in a variety of applications where space may be limited or additional detection is required to complement pre-installed sensors, such as on revolving doors where pinch-zone protection is needed.

The FOCUS 2 offers the same protection as the FOCUS but can be recess mounted.

The FOCUS FAMILY can be used on revolving doors, drive-thru windows, and in industrial applications such as gate and access control.

Features

• Low profile detection - Low profile, recessed mount enables FOCUS 2 to protect pedestrians from contact with the moving door.
• Perfect for activation of small windows / pass-thru - Ideal for drive-thru / pass-thru applications.

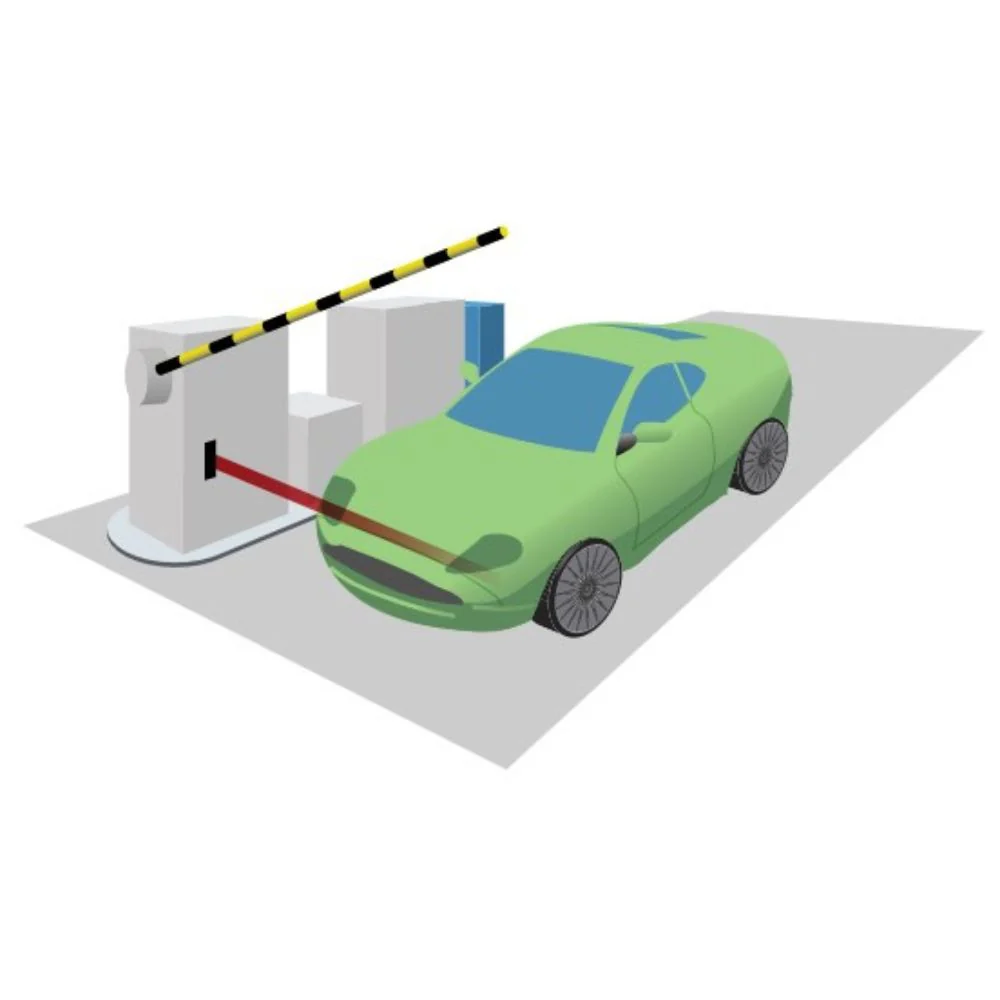

• Ideal for gate and barriers - Horizontal mount for use in gate and barrier applications.

Specifications

• Technology: Focused Active Infrared
• Detection Mode: Presence
• Power Supply: 24 VAC / VDC ±10%
• Current Consumption: 60 mA (On); 30 mA (Off)
• Output Interface; Relay: Relay; max. contact rating is 1 A @ 30 V (resistive)
• Detection Range: 0 – 8 1⁄5’
• Distance Adjustment: 2 – 8’, rotating cam with linear adjustment
• Detection Time: < 50ms
• Detection Signal Duration: Infinite Presence Detection
• LED Indicator: Green - No detection
• Operating Temperature Range: -30 – 140 °F
• Connection to the controller: 5-conductor cable
• Relay Output: NO or NC

Product Literature

• BEA FOCUS Presence Sensors User Guide
• BEA FOCUS Presence Sensors Cut Sheet
• BEA FOCUS Presence Sensors Architectural Spec Sheet
